Reference Section: ATV Spray/Flatbed Trailer


My home-built ATV/UTV spray/flatbed trailer, for use while being towed by my ATV. I needed a sturdy, rugged, high-clearance trailer to tow my spray equipment behind my ATV with, in order to keep the weeds down around my Grandfather's farm where I couldn't reach with tractors and plows. It needed to be able to spray from a nozzle array behind the trailer, as well as allowing for spray wand use for hard-to-reach areas.

This trailer has a removable spray tank & assemblies, so I can use it as a flatbed trailer or to carry other equipment as needed. The majority of the undercarriage pieces and bits came from items I had on hand already, while the tires & wheels came from a couple of old non-functioning riding lawnmowers I found on my Grandfather's property (the rest of the mowers were scrapped; they were in sorry shape).

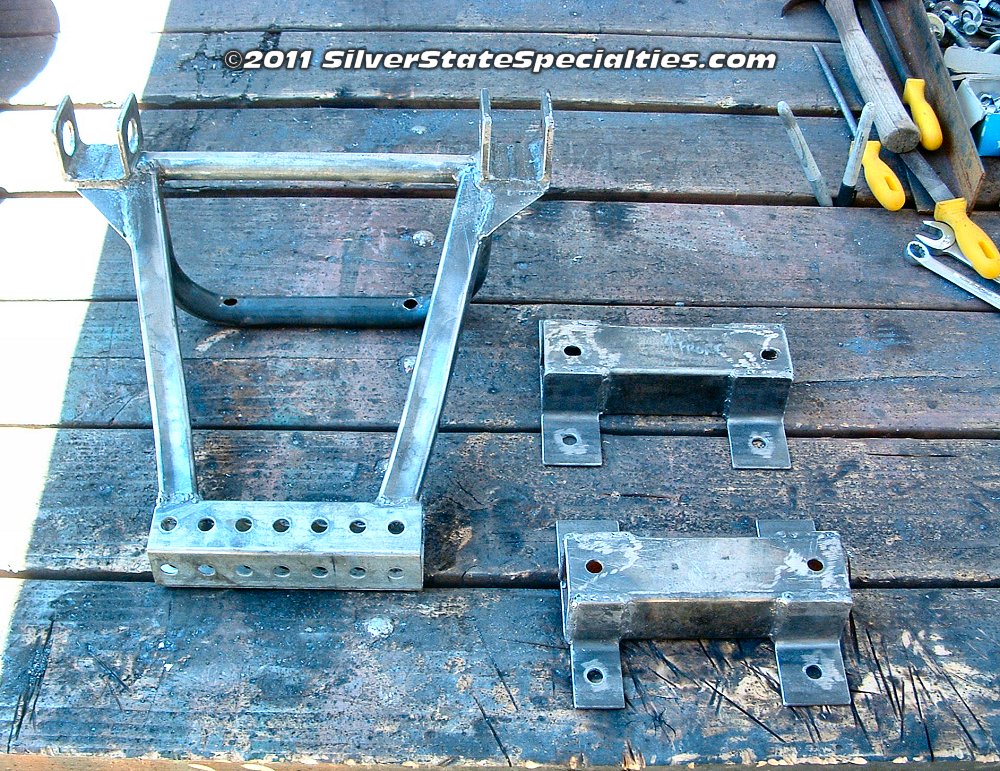

Here is the rear suspension: the axle mounts and axle carrier on the left, with the new lift spacer blocks on the right to provide enough clearance for the larger tires. You can see the original axle mount & suspension piece (the tubular steel with the holes drilled into it).
