Reference Section: 1942 Caterpillar D4-5T Bulldozer
This is my 1942 Caterpillar D4-5T Bulldozer, from my personal collection. It has a front-mounted hydraulic pump to operate the hydraulic cylinders for raising & lowering the dozer blade. The engine is a Caterpillar diesel, but is started by a "pony motor." The pony motor then engages the main diesel motor via a clutch lever, sort of like a primitive starter. The glass jar is placed inverted over the exhaust stack in order to keep rain water out of the diesel engine cylinders.

AUGUST 2013: The first several views are of the dozer at its previous owner's property north of San Francisco, California, shortly before I loaded it onto my trailer for the long trip to Las Vegas, Nevada, and eventually to my mini-ranch property in Utah. It has had a hard life; prior to the fellow I purchased it from buying it, it belonged to a guy who used it for road-building...it has been ridden hard and put away wet, so to speak. It was purported to have run & operated shortly before I bought it, so soon I will dig into it to see if I can get it started & running. Eventually it will undergo a complete restoration, but in the meantime I hope to get it running so I can use it for small jobs around my mini-ranch property.

APRIL 2016 : Later views show the dozer in my side yard at my home in Las Vegas, and then the eventual transfer to my shop building on my mini-ranch property in Utah.

Originally, this dozer went right to the US Army; you can still see traces of the original Olive Drab coating where the yellow paint has peeled away. When I restore it, I will probably put it back in its original WWII-era OD Green with white stars & US Army markings.

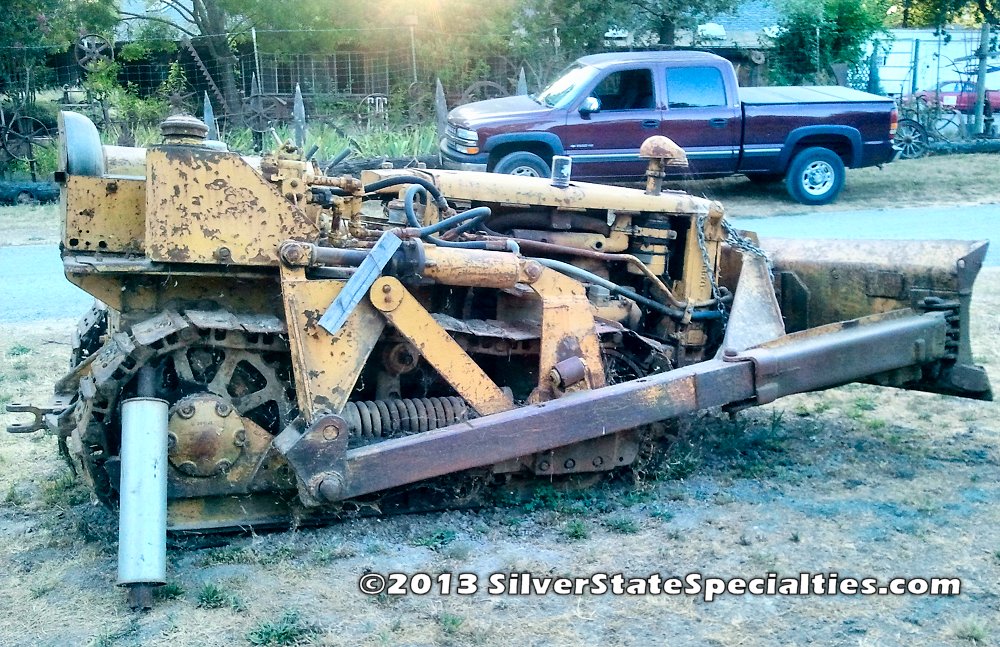

The dozer as it sat on its previous owner's property in northern California, awaiting loading onto my trailer

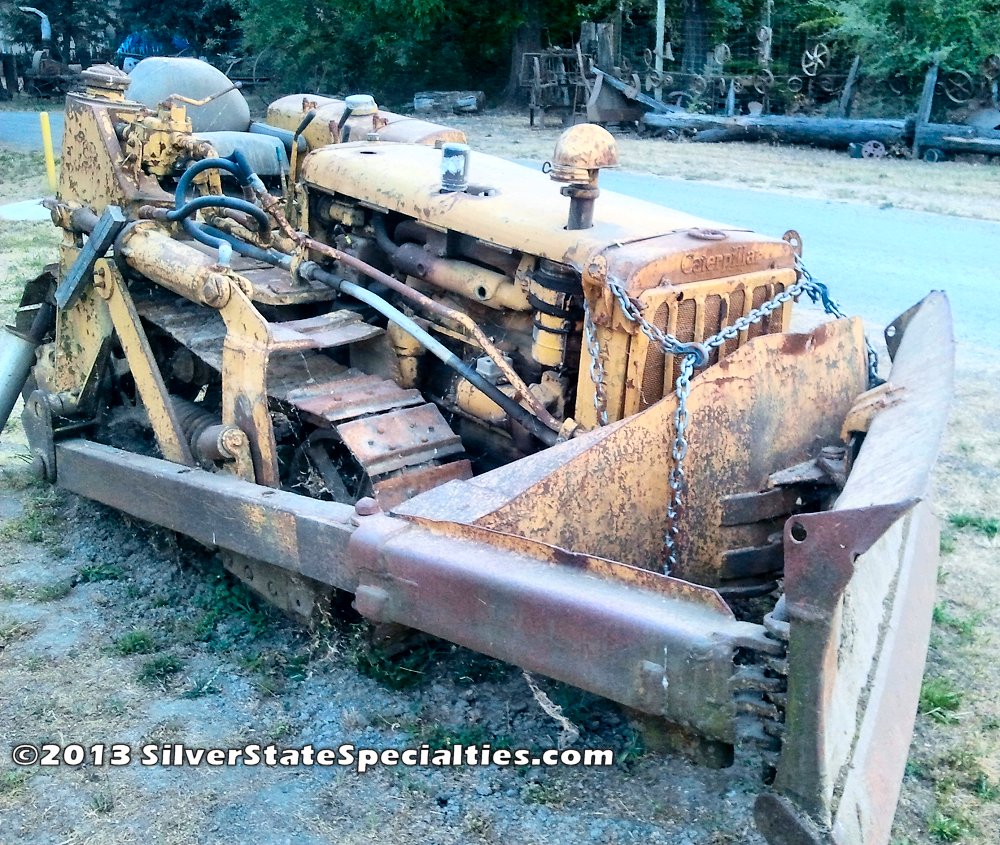

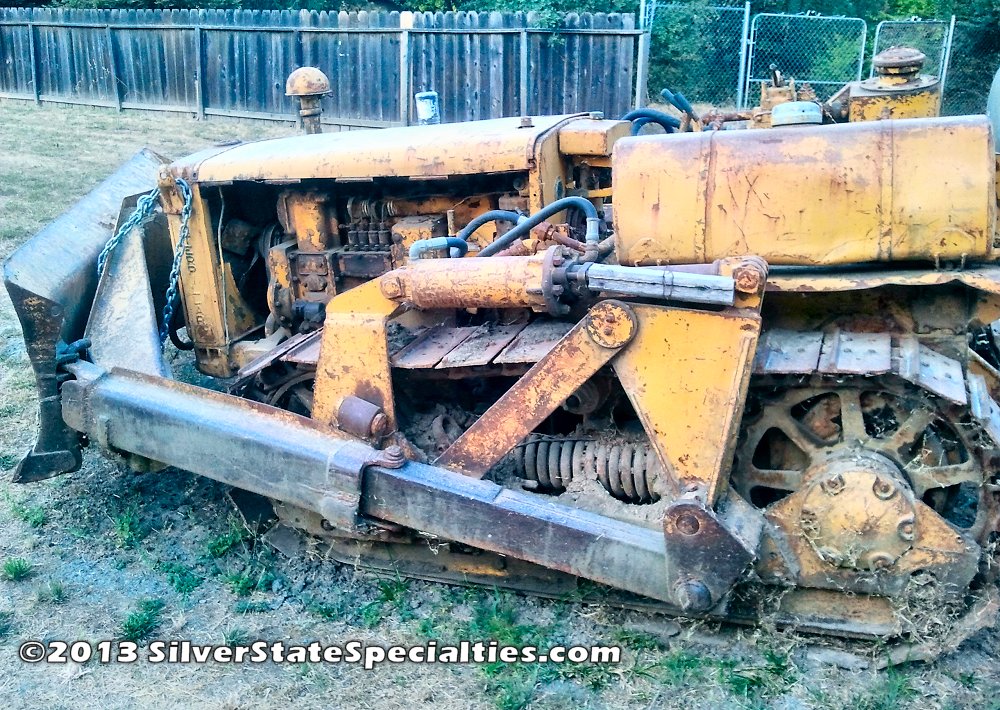

1942 Caterpillar D4-5T Bulldozer		 Right front view, showing the 3-way blade. Its life of heavy use is evident throughout
1942 Caterpillar D4-5T Bulldozer		 Left side view. The entire dozer was covered with cobwebs from sitting so long

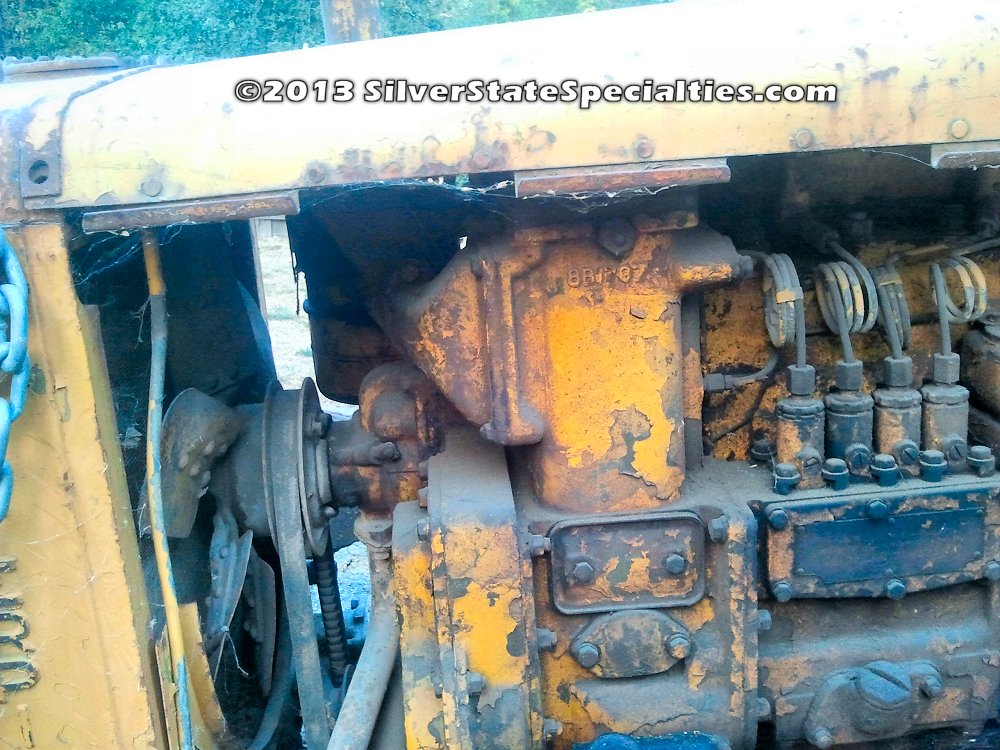

1942 Caterpillar D4-5T Bulldozer		 Upper fuel injection pump, water pump, fan, and radiator
1942 Caterpillar D4-5T Bulldozer

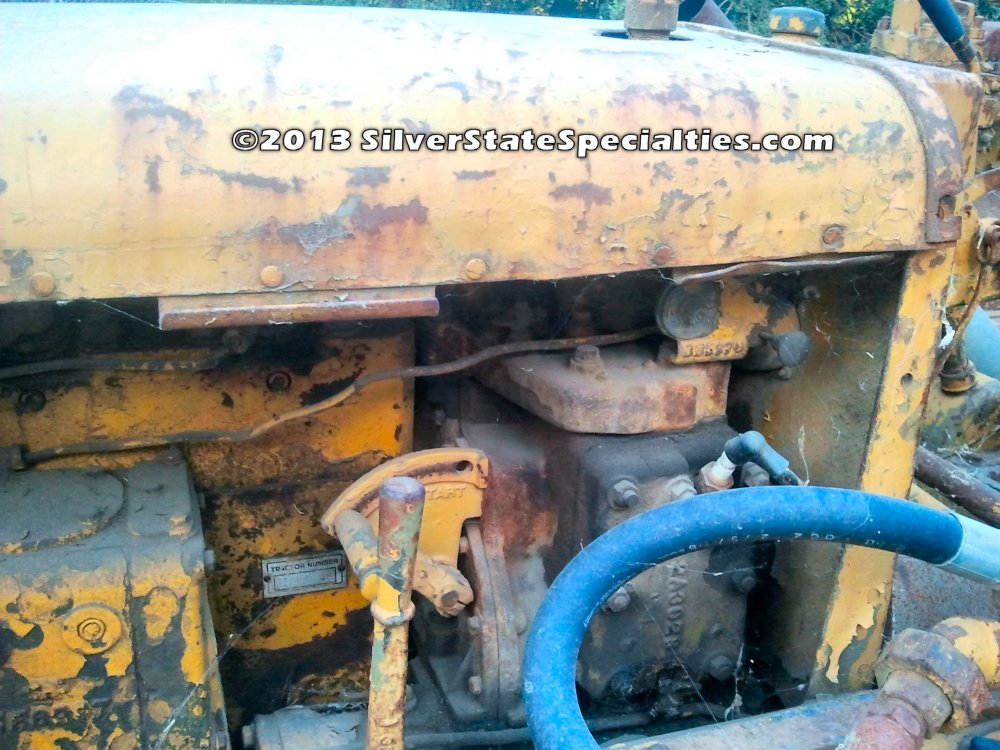

Left side of engine, showing upper part of pony motor and its associated levers and rods

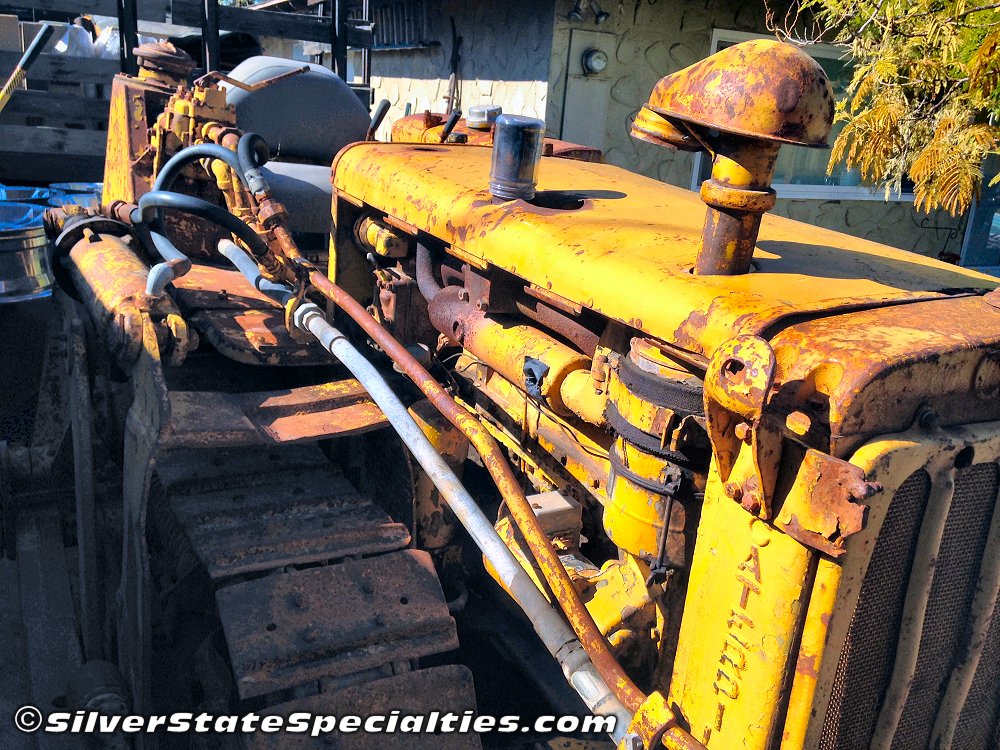

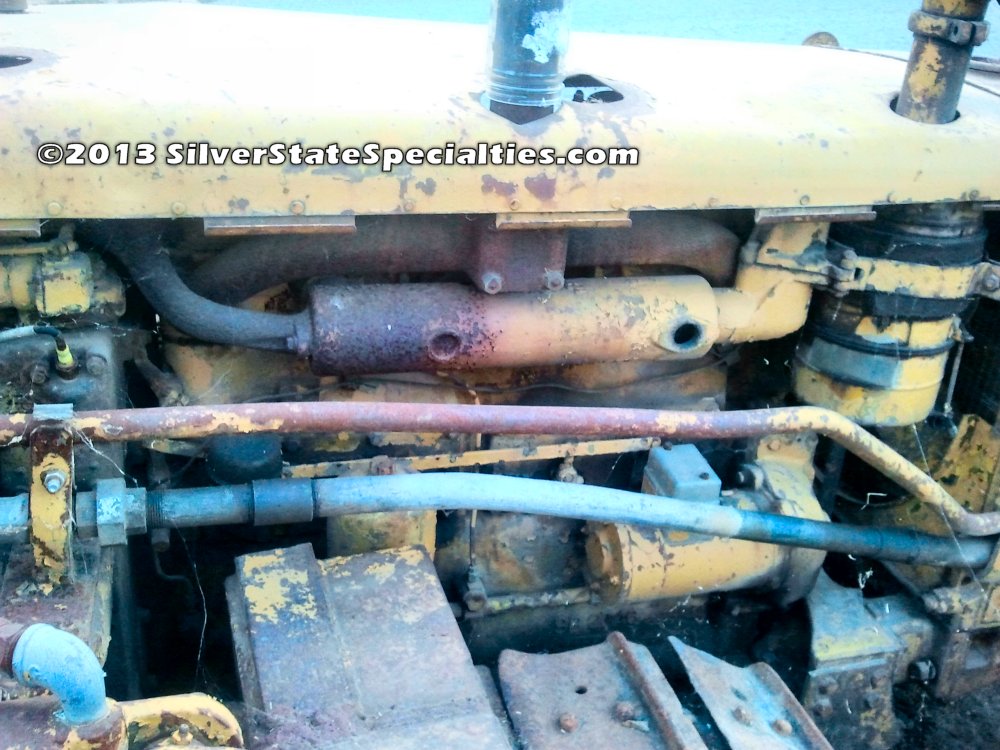

1942 Caterpillar D4-5T Bulldozer		 Right side of engine, showing intake and exhaust manifolds. I will need to install a new freeze plug in the intake manifold
1942 Caterpillar D4-5T Bulldozer		 Looking down on the hydraulic pump, mounted to front crankshaft PTO

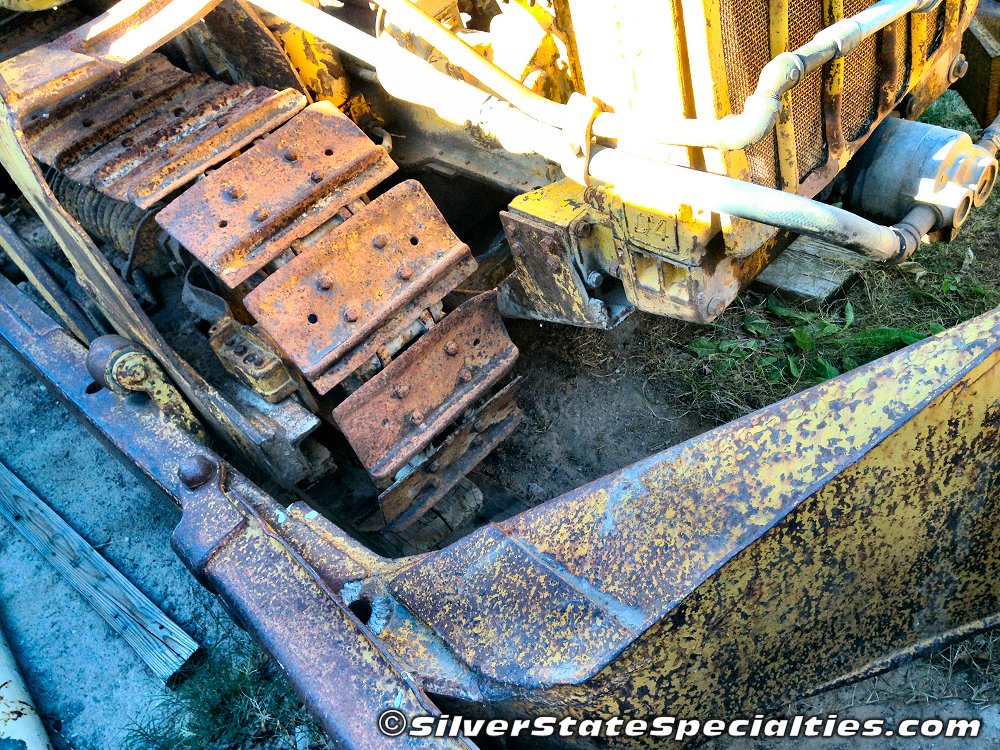

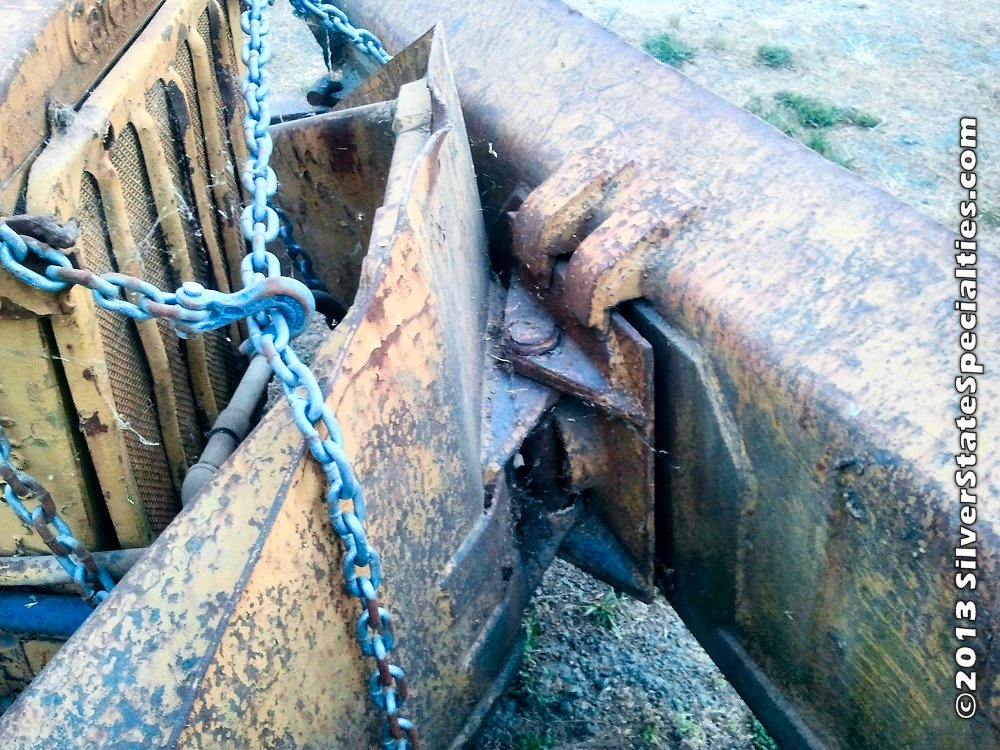

1942 Caterpillar D4-5T Bulldozer		 Dozer blade center pivot
1942 Caterpillar D4-5T Bulldozer

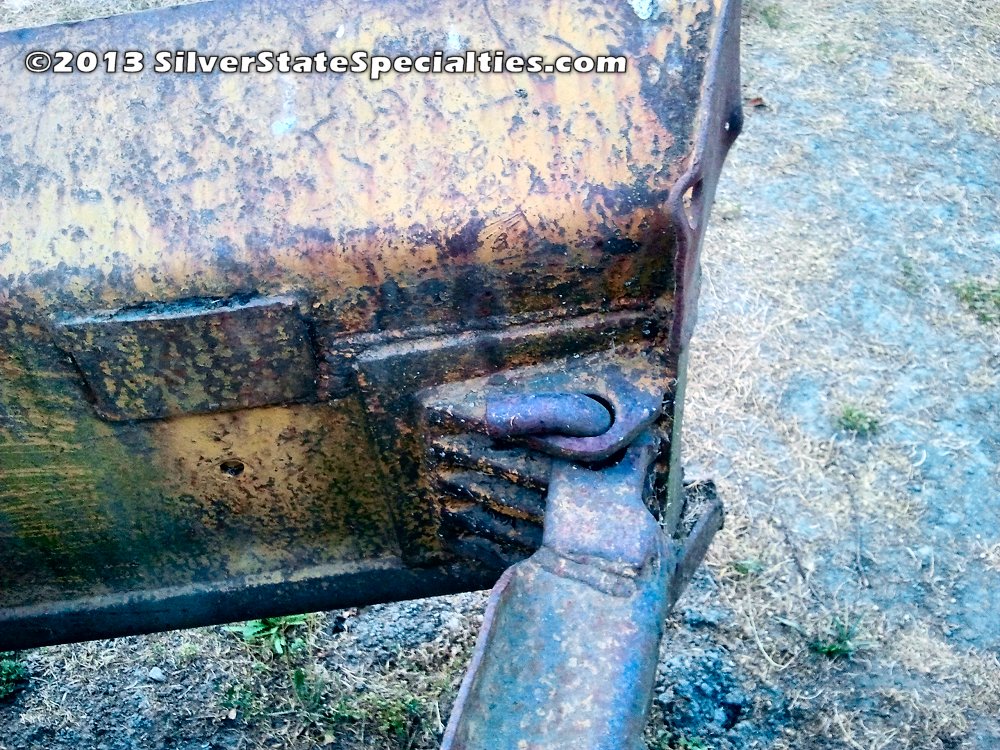

Blade pivot pin
1942 Caterpillar D4-5T Bulldozer		 Looking forward at operators controls and pony motor pull starter flywheel

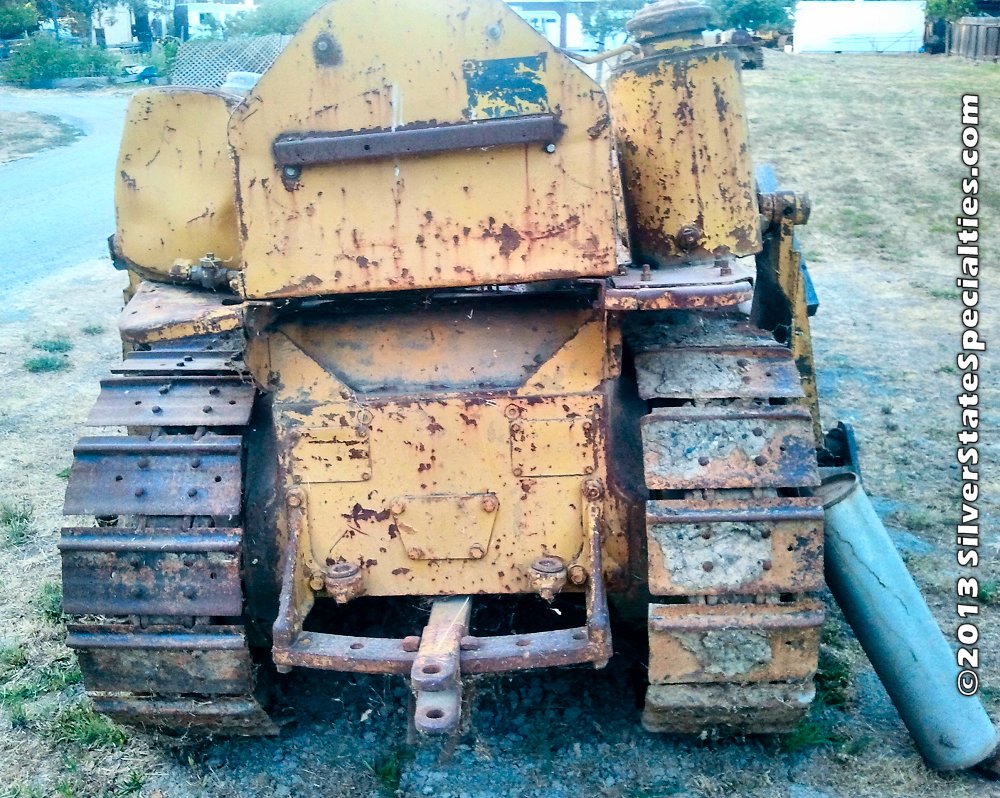

1942 Caterpillar D4-5T Bulldozer		 View of rear. If you look closely, you can see that the dozer has a different type of track on each side

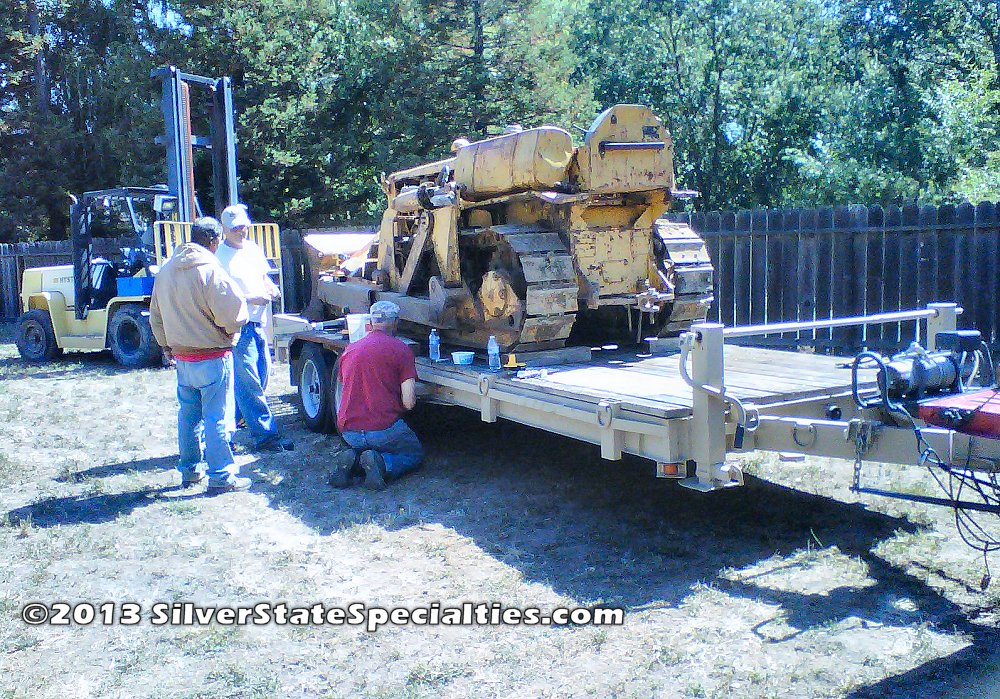

1942 Caterpillar D4-5T Bulldozer		 Getting the dozer loaded and prepped for journey to its new home in Las Vegas
1942 Caterpillar D4-5T Bulldozer
Pressure-washed and sitting in my side yard at my home in Las Vegas

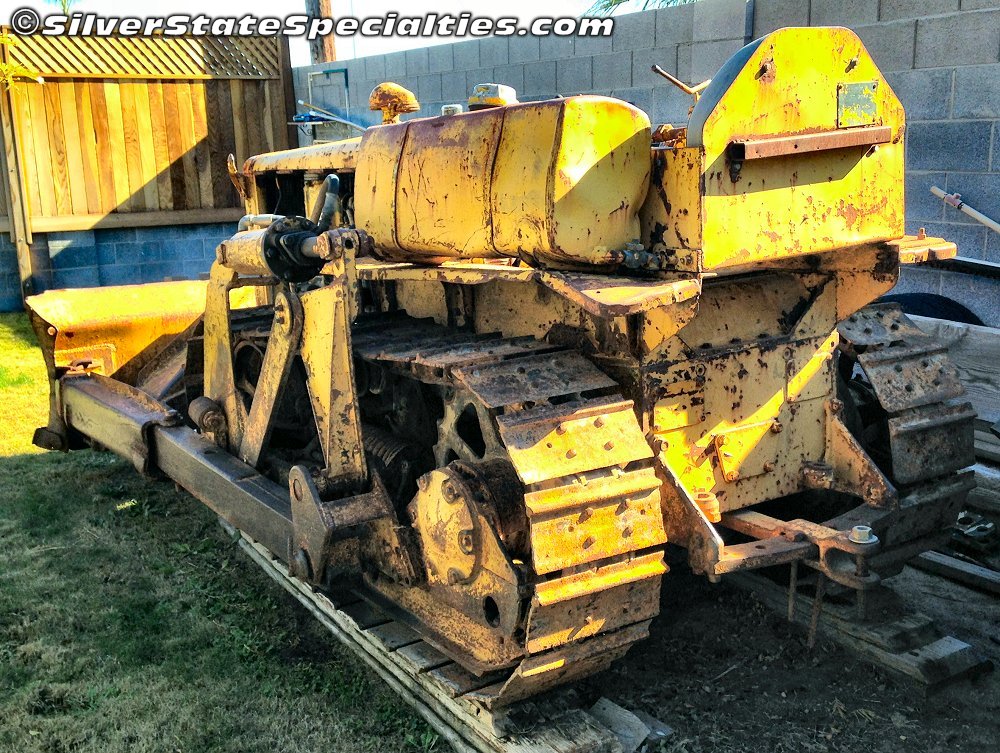

1942 Caterpillar D4-5T Bulldozer		 Left rear view, as it sits in my side yard at my home in Las Vegas

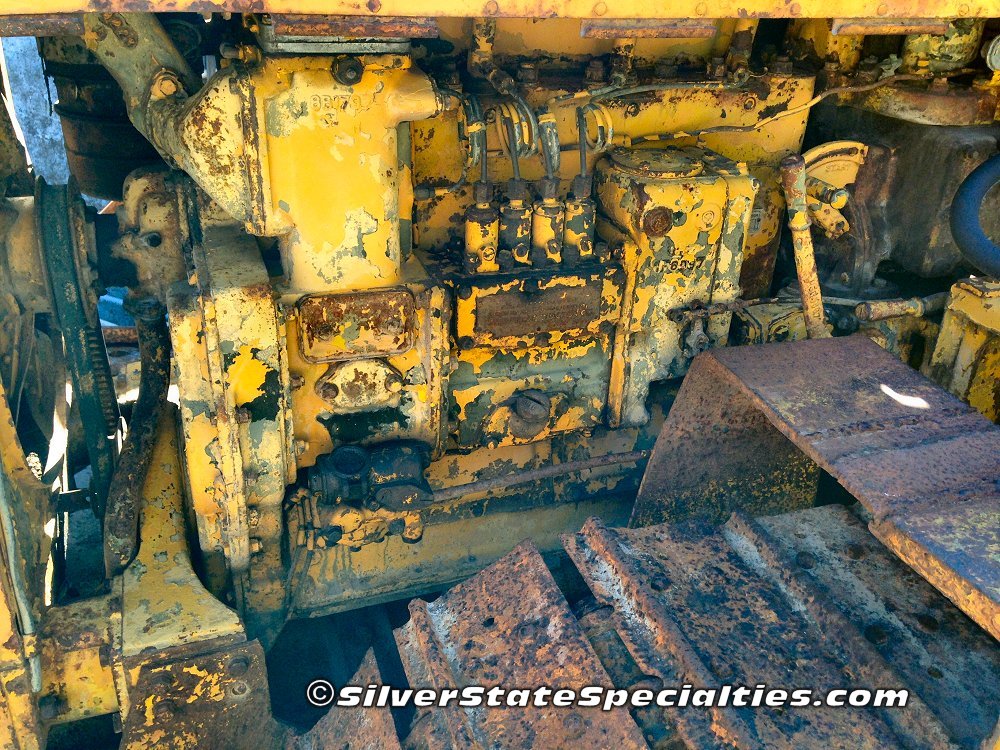

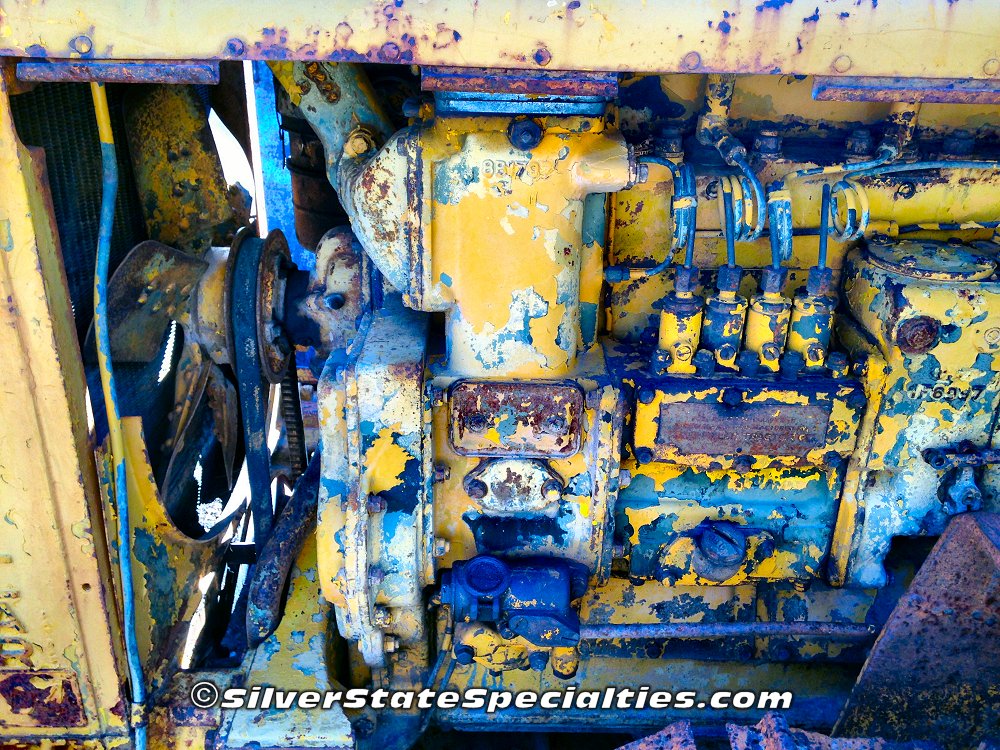

1942 Caterpillar D4-5T Bulldozer		 Left side of engine, showing fuel injection pump, hour meter, and fan with belt. If you look closely you can see the original US Army OD-Green underneath the peeling yellow paint
1942 Caterpillar D4-5T Bulldozer		 Another view of injection pump and radiator fan
1942 Caterpillar D4-5T Bulldozer

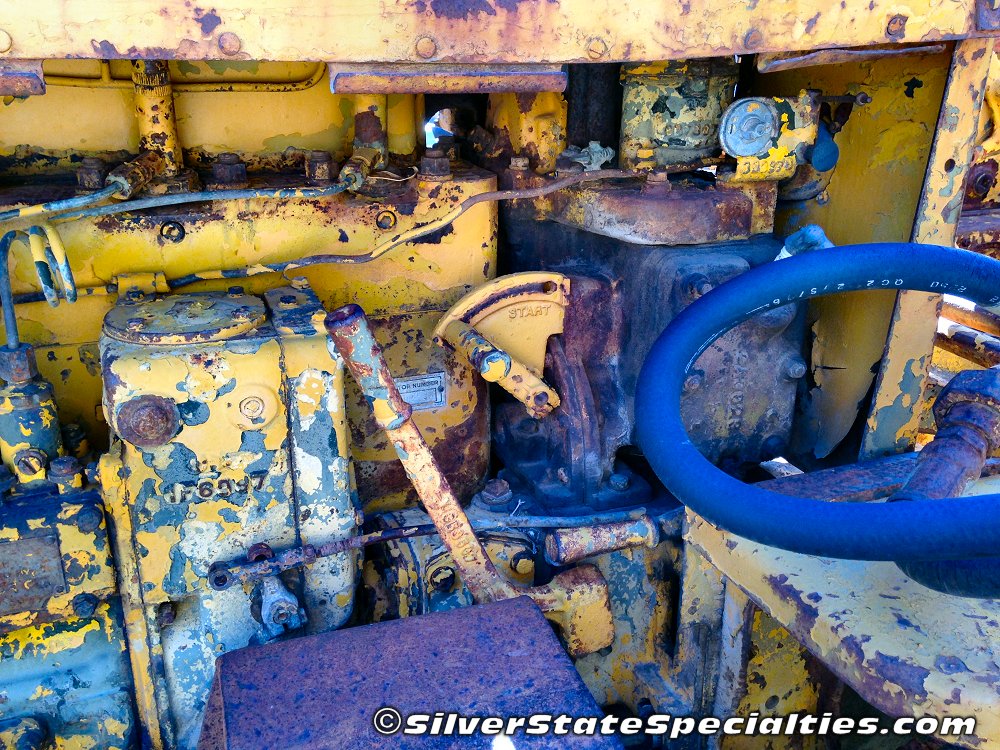

Pony motor and its controls and levers

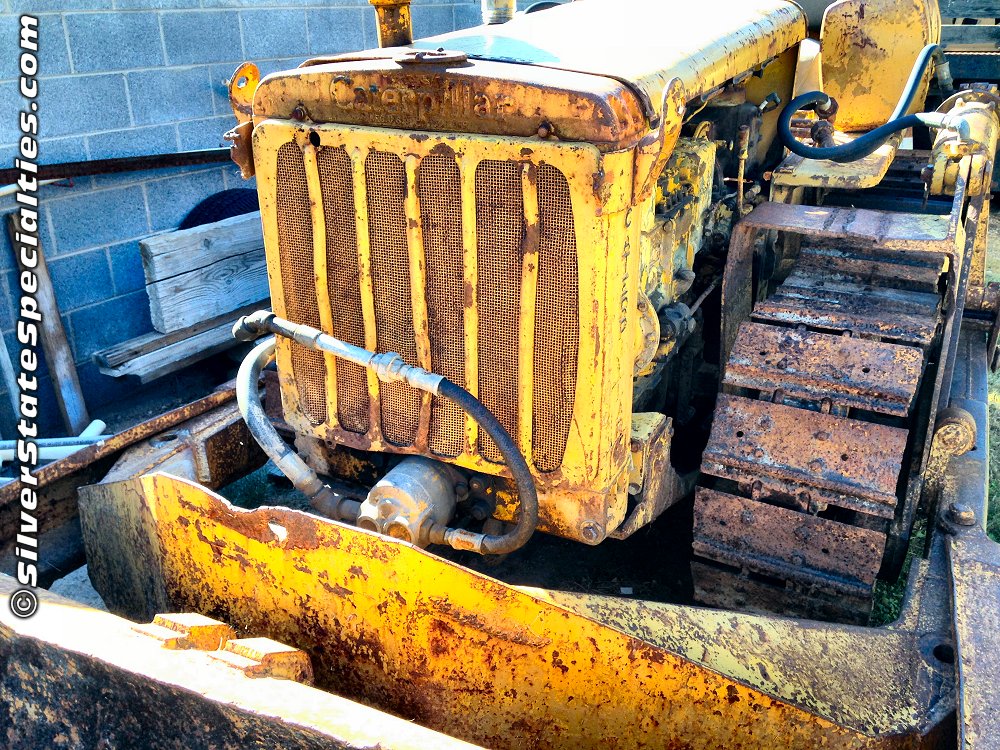

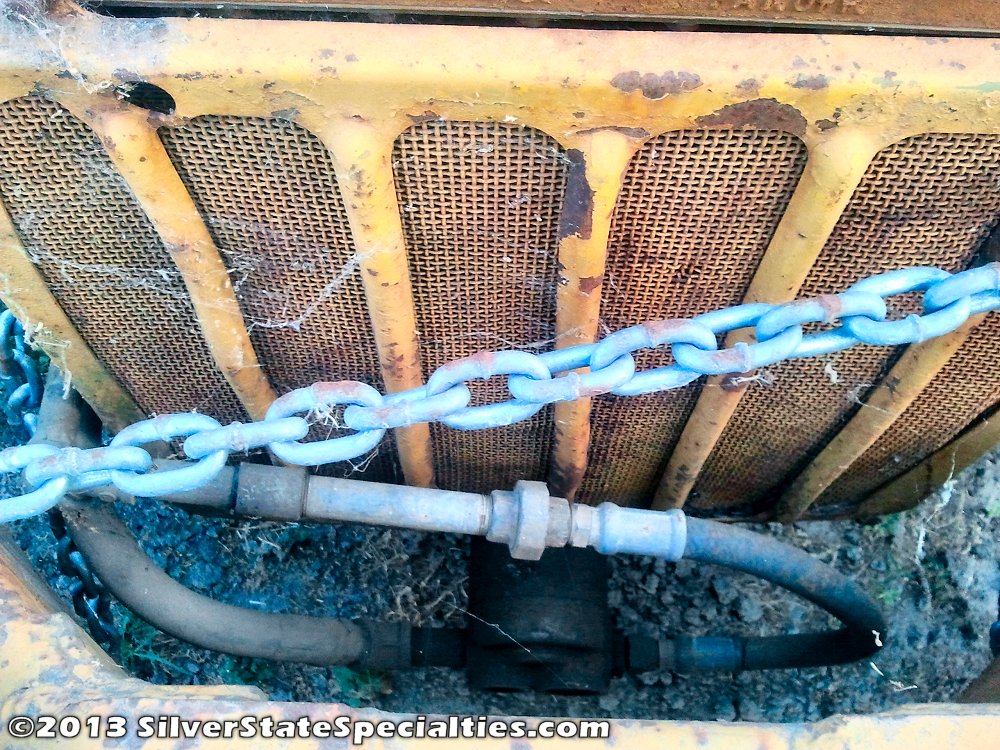

1942 Caterpillar D4-5T Bulldozer		 Front hydraulic pump and associated piping

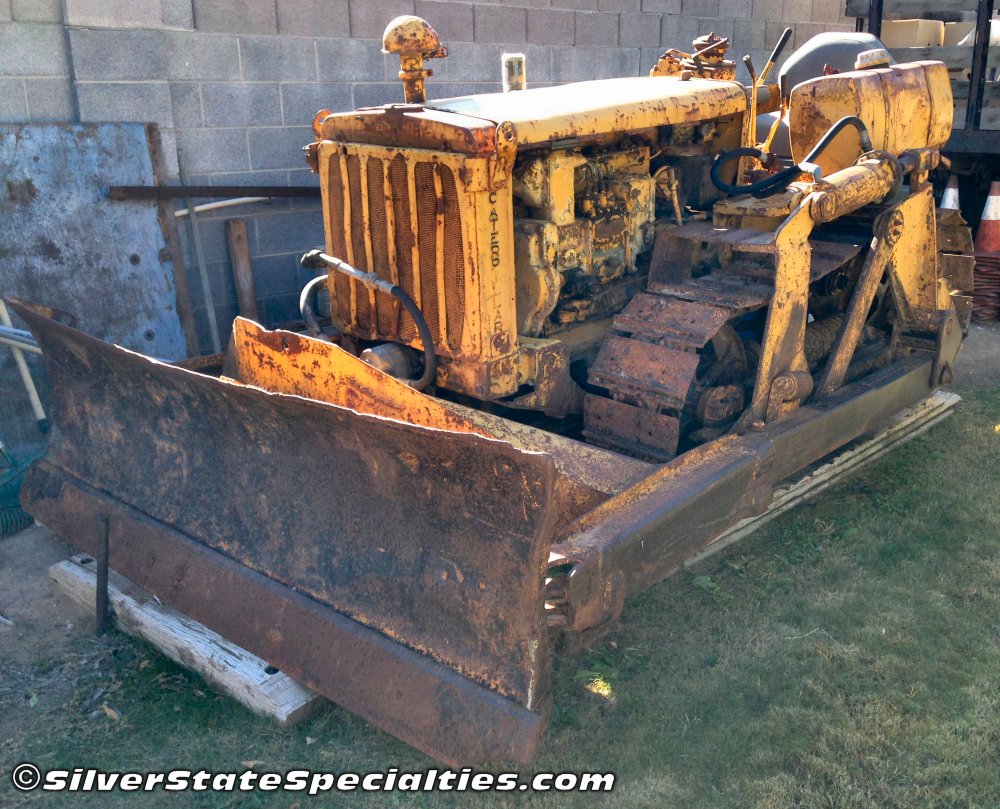

1942 Caterpillar D4-5T Bulldozer		 Right front view
1942 Caterpillar D4-5T Bulldozer		 Right front view
1942 Caterpillar D4-5T Bulldozer

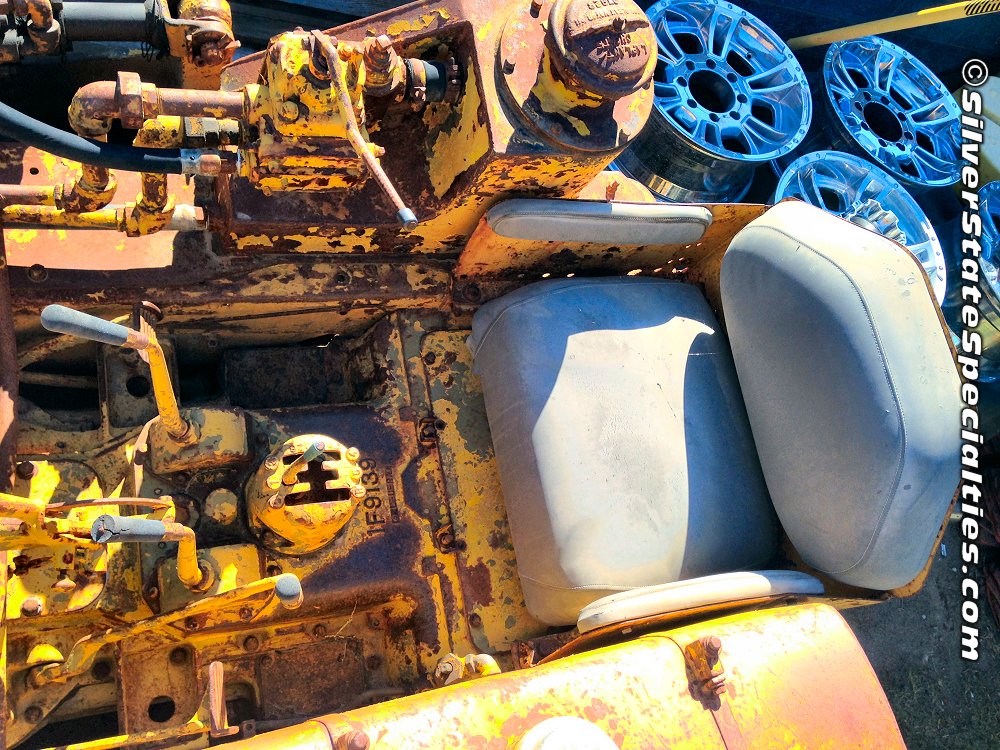

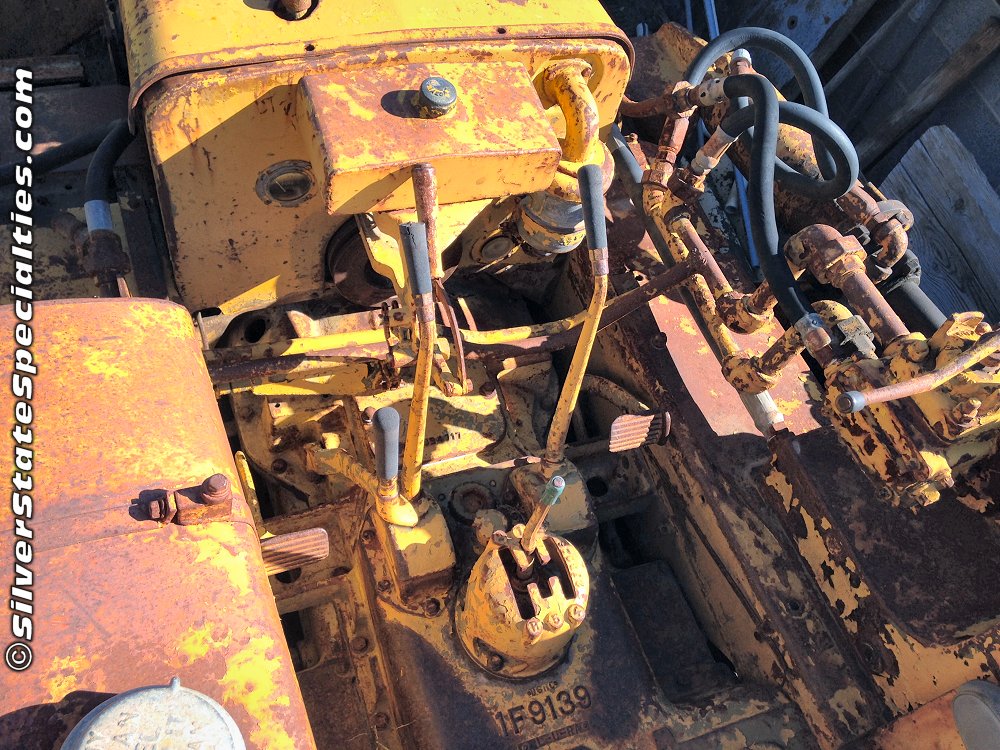

Looking down on operators seat and controls
1942 Caterpillar D4-5T Bulldozer		 Looking down on operators controls

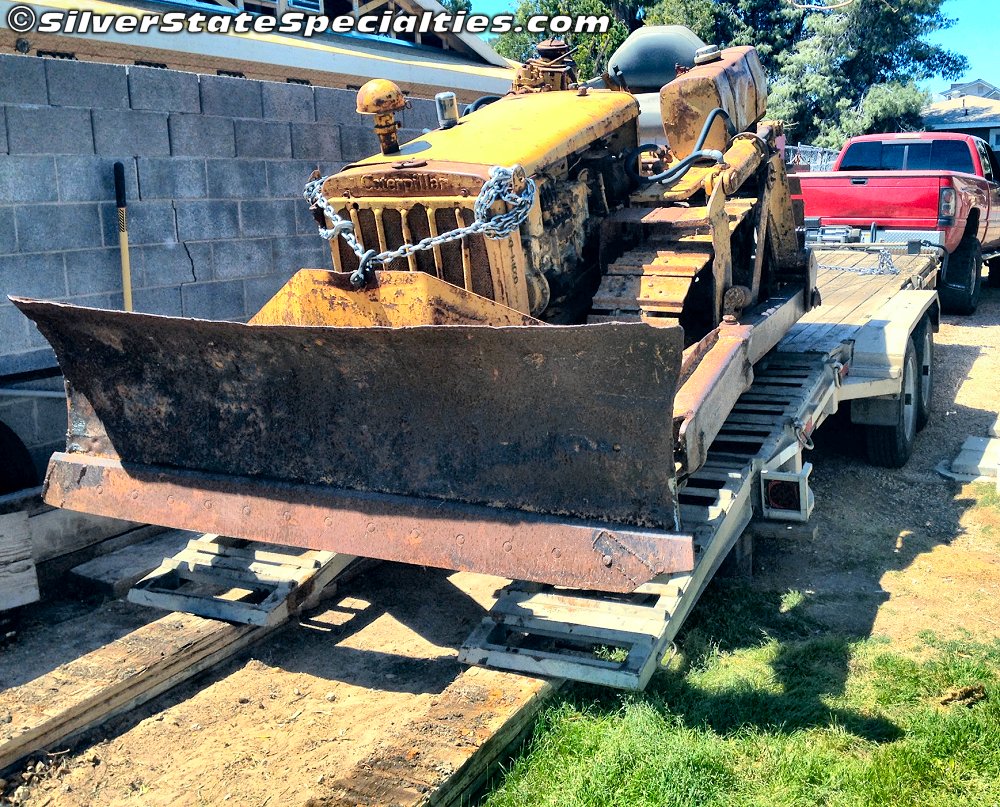

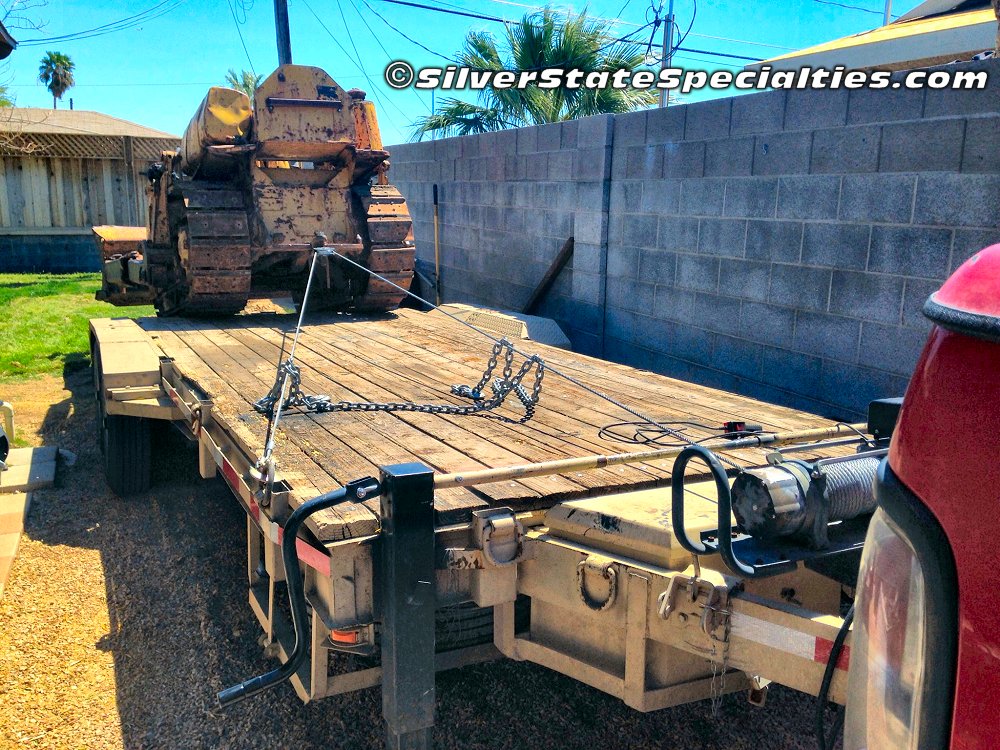

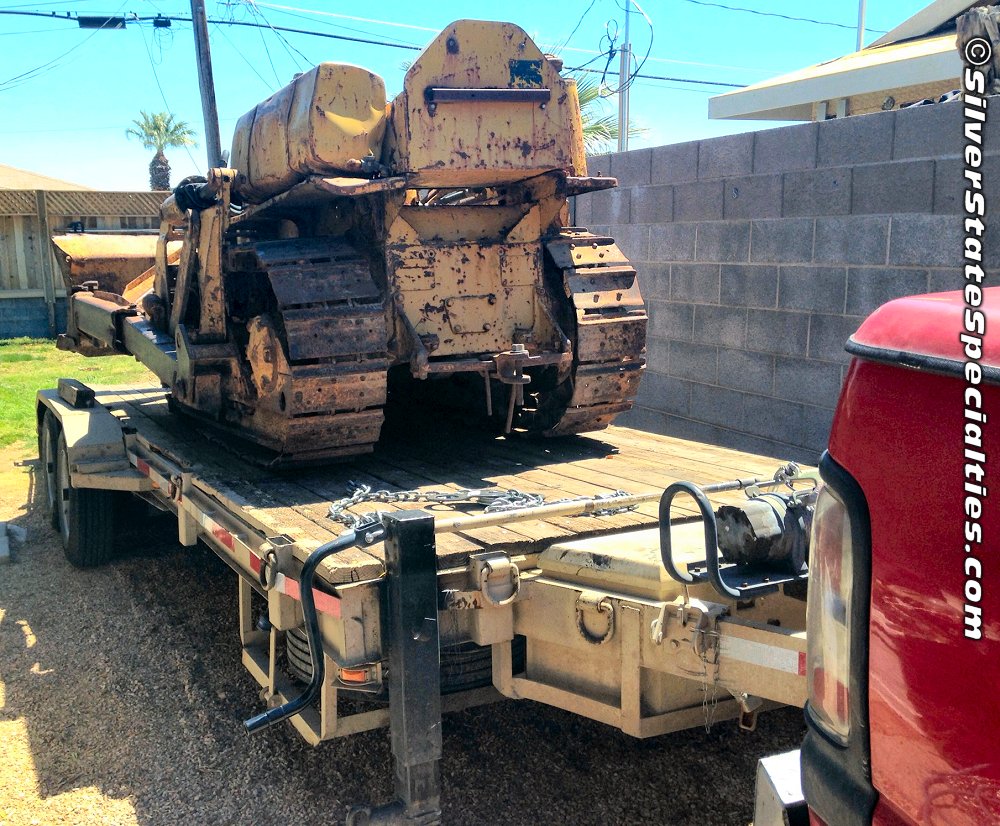

1942 Caterpillar D4-5T Bulldozer		 Winching it back aboard my trailer so it can be relocated to my shop building in Utah
1942 Caterpillar D4-5T Bulldozer		 Winching it back aboard my trailer so it can be relocated to my shop building in Utah
1942 Caterpillar D4-5T Bulldozer

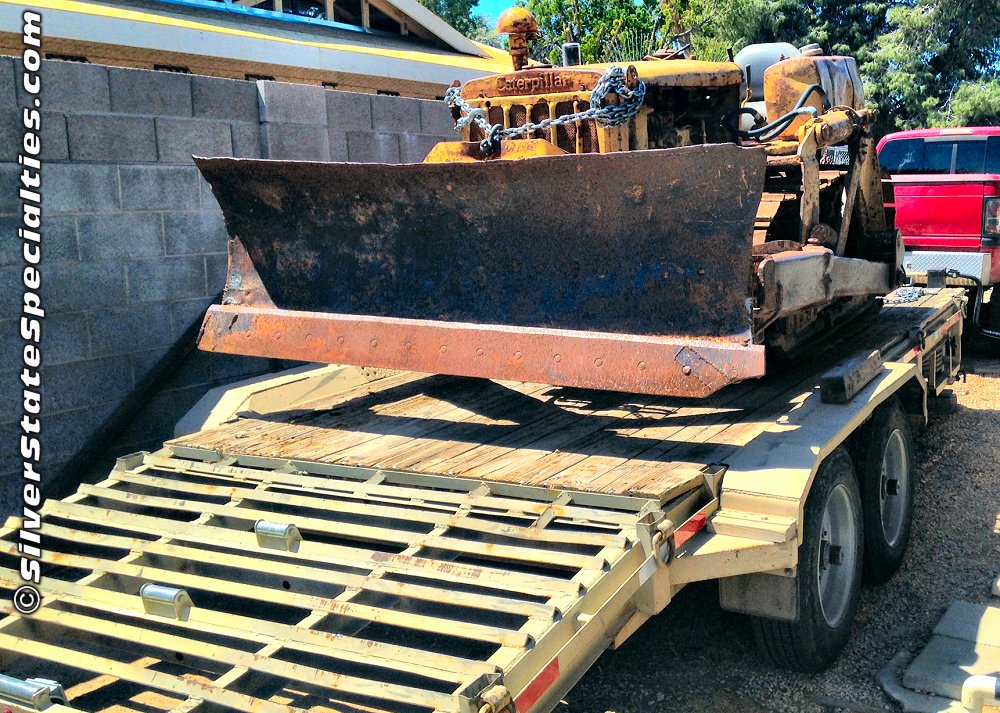

Ready to be secured for its final journey
1942 Caterpillar D4-5T Bulldozer		 Ready to be secured for its final journey

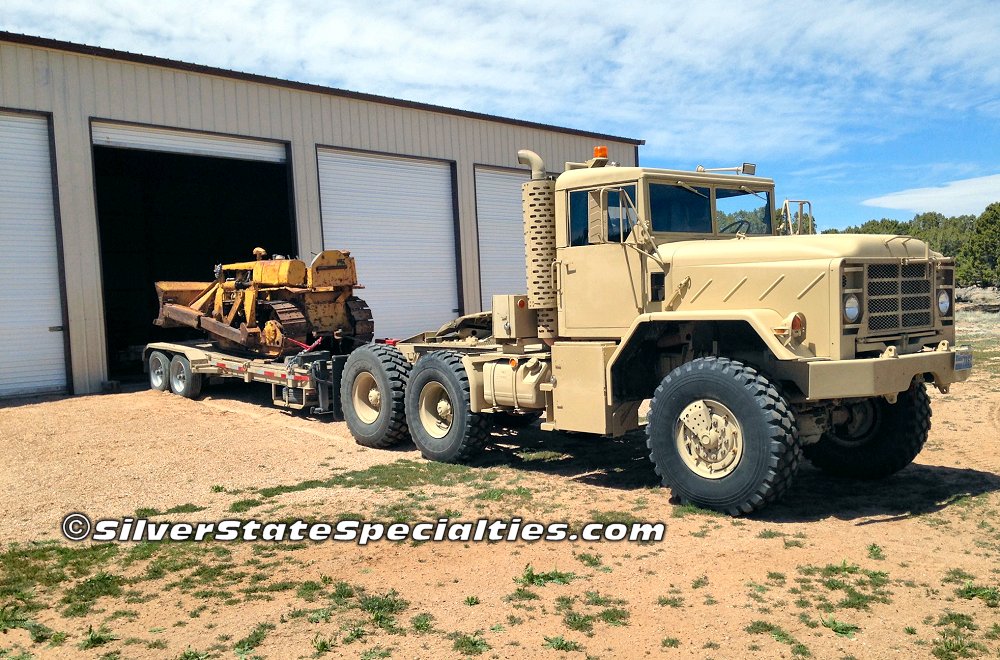

1942 Caterpillar D4-5T Bulldozer		 Getting ready to winch the dozer off my trailer and into a shop bay for future restoration

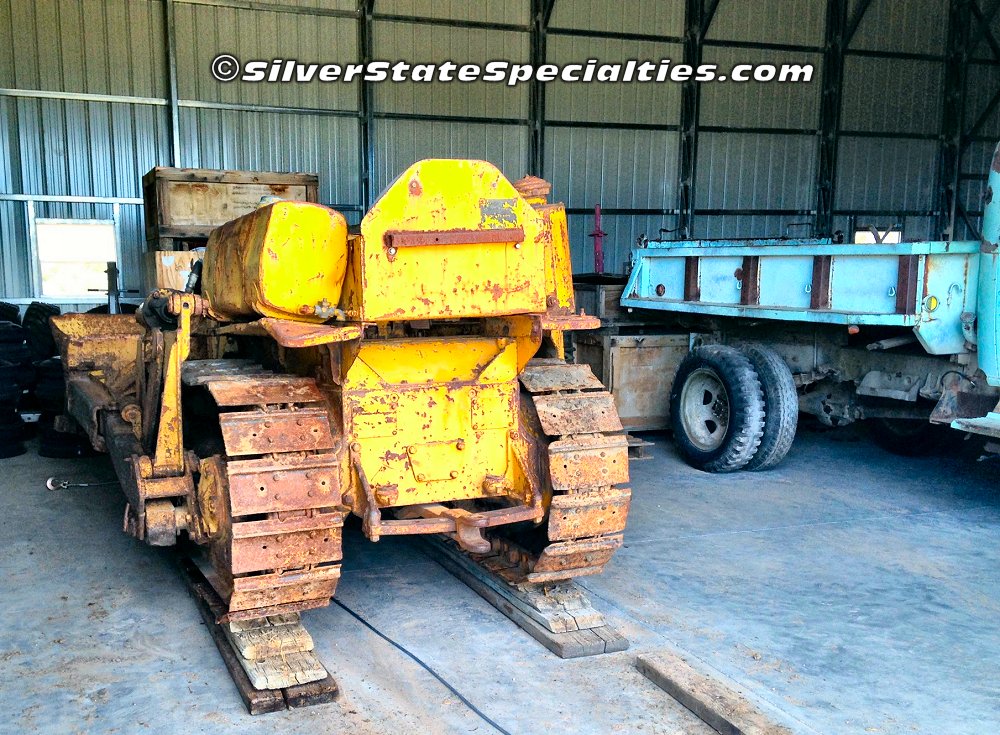

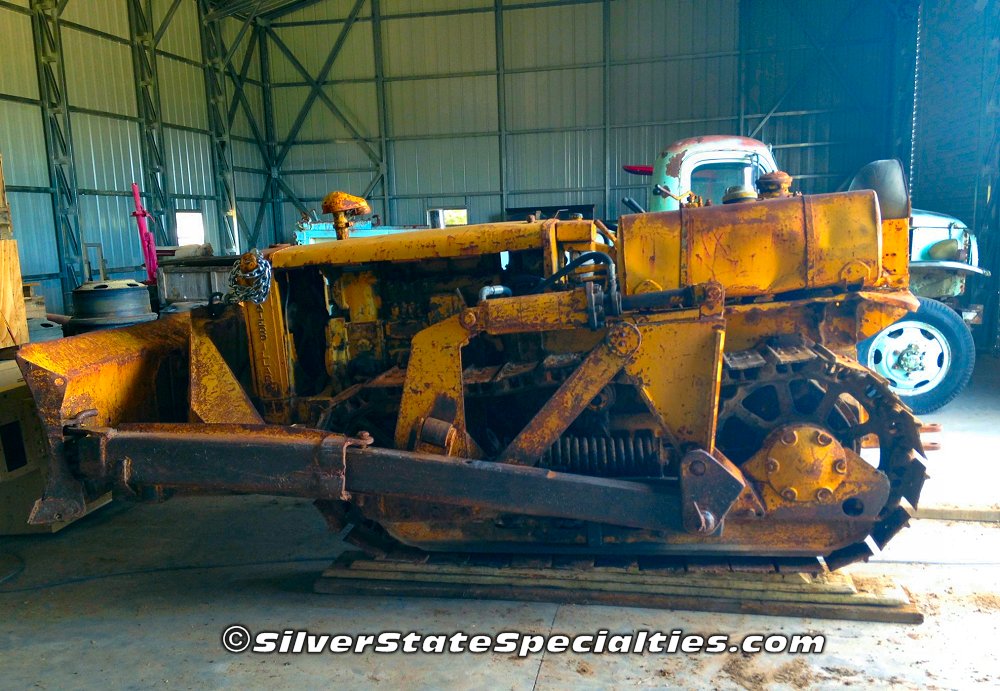

1942 Caterpillar D4-5T Bulldozer		 Safe and sound inside my metal shop building, awaiting future restoration
1942 Caterpillar D4-5T Bulldozer
Safe and sound inside my metal shop building, awaiting future restoration. Behind dozer is my old 1942 Chevy G506 4x4 military truck that I have since sold to a friend
1942 Caterpillar D4-5T Bulldozer
